Note: We can produce and ship any size curtain in 1-2 business days of order receipt. Contact us today at sales@bysonproducts.com

Sliding PVC Strip Curtain Kit - 3ft W x 7ft H (or similar) opening

Complete kit - comes with everything needed right out of the box to have your curtain up within minutes.

Includes

• Strip Curtain
  • 6x PVC Strips, 7ft (30% overlap)
    • Size - 2.0mm x 8in
    • Type - Smooth Standard

    • Color - Clear with Blue tint

    • Stainless Steel Curtain Plates preinstalled
  • 1x 1 meter (40in) Stainless Steel Hanging Rail

• Sliding System
  • 2x Single Strut 2 Wheel Trolleys with Mounting Hardware
  • 2x Strut Trolley U-Shaped Hanger Brackets with Mounting Hardware
  • 2x Strut Angle Connectors, 90 Degree

Not Included

• 1x Slotted Strut Channels, 6.5ft or greater (12 or 14 Gauge)
  • Contact us for options (stocked at our Vaughan warehouse)

Installation

1. Mount Angle Connectors to wall
   1. Mark installation points on wall
   2. It is recommended to drill through the wall and secure the Connectors using threaded rod (Byson Mounting Hardware Set can be used)
2. Secure Hanger Brackets to Angle Connectors
3. Install Strut in Hanger Brackets
4. Secure Trolleys to holes in Hanging Rail
5. Hang PVC Strips on Hanging Rail

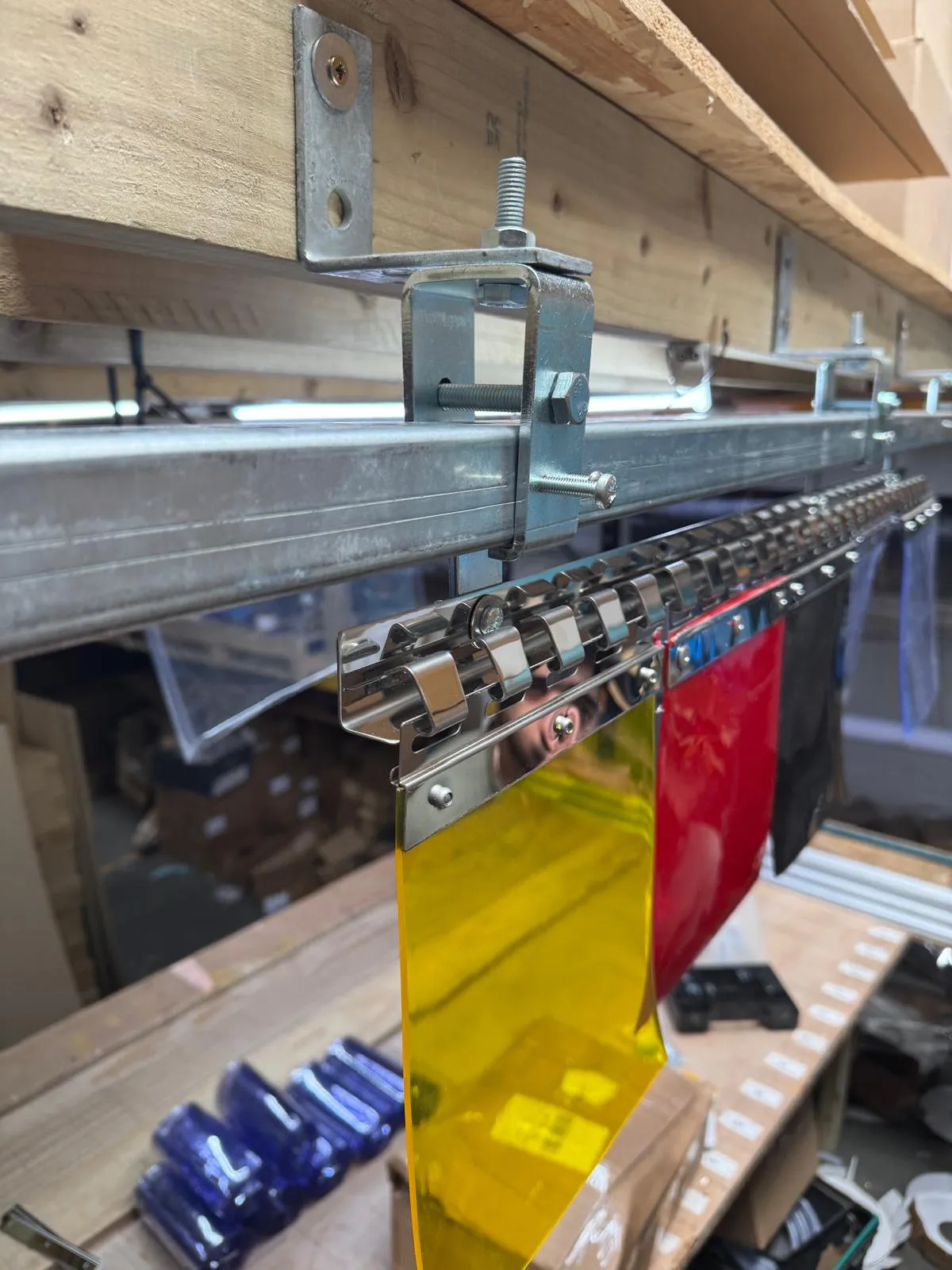

HangRite Strip Curtain system - fast and easy strips installation

• The Byson HangRite system is our proprietary design based on years of client feedback, and utilizes a unique hooking method used in all our PVC Strip Curtain Kits
• The Curtain Plates allow the strips to be easily hung onto the rail. This makes it easy to put strips on or replace damaged ones

Notable Strip Curtain product features

• PVC material
  • Byson high grade PVC is strong enough to withstand all tough conditions, and can be used in temperatures from +50 to -35 C
  • REACH certified - REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) is a regulation of the European Union entered into force in 2007, adopted to improve the protection of human health and the environment from the risks that can be posed by chemicals
• Byson Hanging Rail and Curtain Plates
  • Made of Stainless Steel - stronger than galvanized steel and aluminum products typically available in the market
• Designed, assembled and quality controlled in Canada

References

• Installation Video
• Example Installs
• Manual
• PVC Performance Testing
